Tube Inspection & Eddy Current Testing in Chennai
Specialized electromagnetic and acoustic internal tube inspection for condensers, heat exchangers, chillers, and boiler tubing in Chennai.

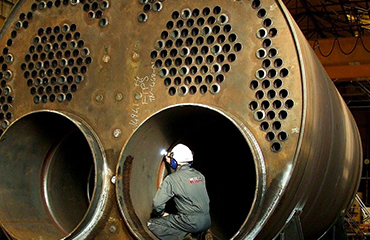

Certified Level II inspector performing Tube Inspection Techniques. LEVEL II / III
Overview of Tube Inspection Techniques (TUBE)
Detailed testing capabilities provided by NP Technical Services Pvt. Ltd. from our West Tambaram, Chennai facility.
Tube inspection utilizes specialized internal probes (bobbin coils, ultrasonic rotary probes) pulled through tubular heat exchangers to detect wall thinning, pitting, erosion, and stress cracking.
Specialized internal bobbin coils, internal rotary inspection system (IRIS) ultrasonic heads, or remote field testing (RFT) probes are inserted into tubes and pulled back with automated probe pushers. Real-time multi-frequency phase and amplitude curves detect internal and external diameter flaws, baffle cuts, and remaining wall thickness.
Certified Technical Execution Across Tamil Nadu
Every Tube Inspection Techniques assignment is executed adhering to approved written procedures, client inspection test plans (ITP), and certified Level II & Level III oversight.
Tube Inspection Techniques Techniques Deployed
Calibrated inspection procedures tailored for specific geometries, welded joint configurations, and material alloys.
Eddy Current Tubing Testing (ECT)
High-speed bobbin coil examination for non-ferrous condenser tubes (brass, copper-nickel, stainless steel, titanium).
Internal Rotary Inspection System (IRIS)
High-precision ultrasonic rotating mirror mapping for 360° wall thickness measurement in ferrous and non-ferrous tubes.
Remote Field Testing (RFT)
Electromagnetic technique for through-wall inspection of heavy-wall ferromagnetic carbon steel boiler and feed-water heater tubes.
Near Field & Magnetic Flux Leakage (NFT / MFL)
Fast screening for finned tubes and external tube support wear in air-cooled fin-fan exchangers.
Primary Inspection Applications
Tube Inspection Techniques is deployed across raw stock, fabricated structures, and operational plant equipment.
- Power plant steam surface condensers & chiller bundles
- Refinery shell-and-tube heat exchangers & reboilers
- Thermal boiler water-wall, economizer & superheater tubes
- Chemical plant jacketed reaction tubes & condensers
Equipment & Standards Used
All instruments and consumables are verified and calibrated prior to each inspection shift.
- Multi-Technology Digital Tubing Systems (ECT / RFT / NFT / MFL / IRIS)
- Calibrated Internal Differential & Absolute Bobbin Probes
- Ultrasonic IRIS Turbine Heads with High-Frequency Transducers (15–20 MHz)
- Automated Air-Driven High-Speed Probe Pushers & Cable Encoders
Tube Inspection Techniques FAQs
Common questions regarding tube inspection techniques procedures, technician qualifications, and on-site testing in Chennai.
Using high-speed automated ECT probe pushers, NP Tech technicians can inspect 600 to 1,000 tubes per 12-hour shift, minimizing shutdown turnaround duration.
Related Non-Destructive Testing Methods
Combine Tube Inspection Techniques with complementary surface or volumetric testing services for complete quality assurance.
Ultrasonic Testing
Ultrasonic Testing & Thickness Gauging (UT)
High-frequency acoustic wave inspection for detecting internal volumetric flaws, laminar discontinuities, and accurate residual wall thickness measurement in Chennai.
Eddy Current Testing
Eddy Current Testing (ECT / ET)
Electromagnetic induction testing for surface and sub-surface flaw detection, conductivity measurement, and metal sorting in conductive materials in Chennai.
Long Range Ultrasonic Testing
Long Range Ultrasonic Testing (LRUT / Guided Waves)
Screening long pipeline sections from a single test point using low-frequency guided ultrasonic waves to identify corrosion under insulation in Chennai.
Request Tube Inspection Techniques in Chennai
Submit component drawings, weld specifications, or project turnaround schedules for prompt review by our certified Level II / Level III inspectors.
